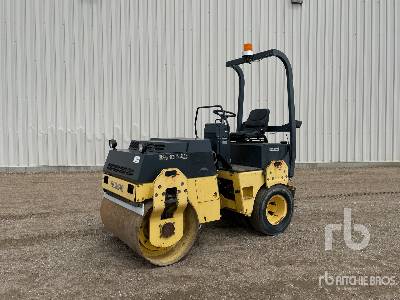

Bomag BW 90 AD-5 Static Smooth Drum Roller

Static Smooth Drum Roller
Static Smooth Drum Roller
Static Smooth Drum Roller
Static Smooth Drum Roller
Static Smooth Drum Roller
Static Smooth Drum Roller
Units

Dimensions

Dimensions

A

Overall Length

86.4in

B

Overall Width

3.13ft in

D

Wheelbase

4.87ft in

E

Ground Clearance

0.84ft in


Specifications

Steering System

System

Oscil

Steering Method

Hydrostatic

Oscillating angle

8degrees

Steering angle to either side

33degrees

Engine

Number of Cylinders

3

Engine Make

Kubota

Engine Model

D 902

Gross Power

20.2hp

Operational

Fuel Capacity

7.9gal

Spray Water Capacity

26.4gal

Max Speed

6.2mph

Drum

Nominal Amplitude - High

0.1in

Centrifugal Force - High

3822lb

Frequency

3780 - vpm

Weights

Operating Weight - standard

3527lb

Gross Weight

4409lb

Max Static Linear Load - Drive Drum

49.8lb/in

Brakes

Parking brake

Hydromec

Service brake

Hydrost

Dimensions

Gradeability

Wheelbase

4.9ft in

Overall Length

86.4in

Overall Width

3.2ft in

Height with ROPS

7.6ft in

Height with out ROPS

5.4ft in

Ground Clearance

0.9ft in

Track radius inner

79.9in
