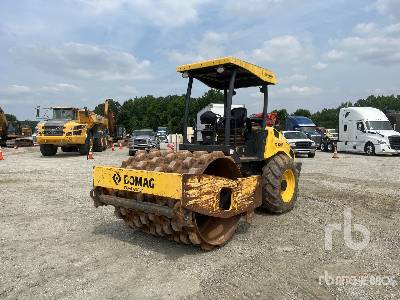

Bomag BC772RB Compactor

Bomag BC772RB Compactor Specs front
Bomag BC772RB Compactor Specs front
Bomag BC772RB Compactor Specs side
Bomag BC772RB Compactor Specs side
Bomag BC772RB Compactor Specs back
Bomag BC772RB Compactor Specs back
Units

Dimensions

Dimensions

A

Length With Blade on Ground

26.65 ft in

B

Width Over Wheels

12.39 ft in

C

Height to Top of Cab

13.46 ft in

D

Wheelbase

11.49 ft in

E

Ground Clearance

1.91 ft in


Specifications

Engine

Engine Make

2349

Engine Model

BF6M1015CP

Gross Power

442.6 hp

Operational

Operating Weight

81205 lb

Fuel Capacity

132.1 gal

Hydraulic System Fluid Capacity

92.5 gal

Engine Oil Capacity

6.9 gal

Operating Voltage

24 V

Transmission

Max Speed

7.5 mph

Wheels

Front Wheels Drum Width

53.2 in

Front Wheels Drum Diameter

63.8 in

Rear Wheels Drum Width

44.3 in

Rear Wheels Drum Diameter

63.8 in

Blade

Height

76.8 in

Width

14.3 ft in

Dimensions

Length with Blade on Ground

26.7 ft in

Width Over Wheels

12.4 ft in

Height to Top of Cab

13.5 ft in

Wheelbase

11.5 ft in

Ground Clearance

2 ft in
