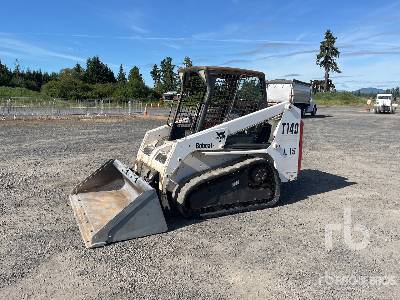

BobcatT140Multi Terrain Loader

Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Units

Dimensions

Dimensions

B

Width Over Tracks

4.53ft in

C

Height to Top of Cab

6.46ft in

G

Clearance at Max Lift and Dump

6.91ft in

H

Reach at Max Lift and Dump

2.13ft in

Undercarriage

D

Length of Track on Ground

4.04ft in

I

Track Gauge

3.6ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2334

Engine Model

V2203M-DI

Gross Power

46hp

Power Measured @

2800rpm

Displacement

134.3cu in

Operational

Operating Weight

6660lb

Fuel Capacity

15gal

Max Speed - high range

7.3mph

Undercarriage

Ground Pressure

5.2psi

Number of Track Rollers per Side

3

Length of Track on Ground

4.1ft in

Width of Track

11.9in

Track Gauge

3.6ft in

Loader

Operating Load

1400lb

Tipping Angle

4044degrees

Bucket Capacity

0.5yd3

Hydraulic

Pump Flow

16.9gal/min

Relief Valve Pressure

2700psi

Dimensions

Width Over Tracks

4.6ft in

Length with Bucket

10.4ft in

Length with out Bucket

8ft in

Height to Top of Cab

6.5ft in

Clearance at Max Lift and Dump

7ft in

Reach at Max Lift and Dump

2.2ft in

Turning Radius from Center - inc bucket

77.2in
