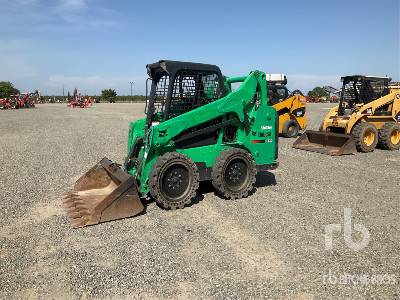

Bobcat S530 Skid Steer Loader

Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Units

Dimensions

Dimensions

A

Length with Bucket

11.09ft in

C

Height to Top of Cab

6.47ft in

D

Wheelbase

3.55ft in

E

Ground Clearance

7.29in

F

Length w/o Bucket

8.72ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

Kubota

Engine Model

V2403-MDI-E3B

Gross Power

48.9hp

Net Power

46.1hp

Power Measured @

2700rpm

Displacement

148.5cu in

Max Torque

117lb ft

Torque Measured @

1600rpm

Bore

3.5in

Stroke

4.1in

Operational

Fuel Capacity

24.8gal

Engine Oil Fluid Capacity

2.3gal

Hydraulic System Fluid Capacity

9.6gal

Chain Box Fluid Capacity - each side

8.6gal

Max Speed

7.4mph

Operating Voltage

12V

Alternator Supplied Amperage

90amps

Loader

Tipping load (ISO 14397)

3699.4lb

Hydraulic

Pump Type

Engine driven, gear type

Pump Flow Capacity

17.1gal/min

Relief Valve Pressure

3500psi

Raise Time

3.8sec

Dump Time

2.3sec

Lower Time

2.5sec

Dimensions

Length with Bucket

11.1ft in

Length w/o Bucket

8.8ft in

Height to Top of Cab

6.5ft in

Wheelbase

3.6ft in

Ground Clearance

7.3in
