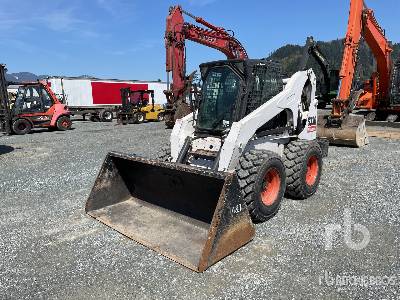

Bobcat S330 Skid Steer Loader

Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Units

Dimensions

Dimensions

A

Length with Bucket

11.91ft in

B

Width Over Tires

6.13ft in

C

Height to Top of Cab

6.85ft in

D

Wheelbase

4.03ft in

F

Length w/o Bucket

9.54ft in

G

Clearance at Max Lift and Dump

8.54ft in

H

Reach at Max Lift and Dump

31.2in


Specifications

Engine

Number of Cylinders

4

Engine Make

2334

Engine Model

V3800-DI-T

Gross Power

85hp

Power Measured @

2575rpm

Displacement

231.9cu in

Operational

Operational Weight

9185lb

Operating Speed

6.9mph

Max Speed

12mph

Loader

Operating Load Rating

3300lb

Tipping Angle

6720degrees

Bucket Capacity

0.7yd3

Hydraulic

Pump Flow Capacity

20.7gal/min

Dimensions

Length with Bucket

12ft in

Length w/o Bucket

9.6ft in

Width Over Tires

6.2ft in

Height to Top of Cab

6.9ft in

Clearance at Max Lift and Dump

8.6ft in

Wheelbase

4.1ft in

Reach at Max Lift and Dump

31.2in

Turning Radius from Center - machine rear

7.2in
