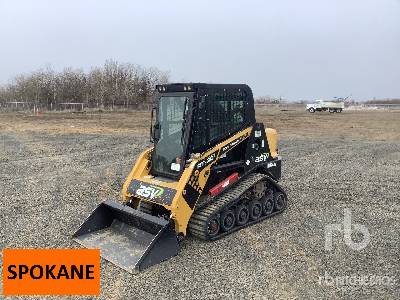

ASV RCV Vertical Lift Multi Terrain Loader

Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Units

Dimensions

Dimensions

B

Width Over Tracks

5.76 ft in

C

Height to Top of Cab

6.64 ft in

E

Ground Clearance

14.02 in

G

Clearance at Max Lift and Dump

8.42 ft in

H

Reach at Max Lift and Dump

2.92 ft in

Undercarriage

D

Length of Track on Ground

6.05 ft in

I

Track Gauge

4.59 ft in


Specifications

Engine

Engine Make

2351

Engine Model

1004C-44

Gross Power

86 hp

Power Measured @

2300 rpm

Peak Torque

222 lb ft

Displacement

268 cu in

Aspiration

naturally aspirated

Operational

Operating Weight

10500 lb

Fuel Capacity

26 gal

Cooling System Fluid Capacity

3.2 gal

Engine Oil Capacity

2.2 gal

Hydraulic System Fluid Capacity

20.1 gal

Operating Voltage

12 V

Alternator Supplied Amperage

65 amps

Max Speed - high range

6 mph

Undercarriage

Ground Contact Area

2604.1 in2

Ground Pressure

3.6 psi

Length of Track on Ground

6.1 ft in

Width of Track

14.1 in

Track Gauge

4.6 ft in

Loader

Operating Load

4000 lb

Tipping Angle

8000 degrees

Hydraulic

Pump Flow

38 gal/min

Relief Valve Pressure

3300 psi

Dimensions

Width Over Tracks

5.8 ft in

Length with Bucket

12.8 ft in

Length with out Bucket

9.8 ft in

Height to Top of Cab

6.7 ft in

Ground Clearance

14.1 in

Clearance at Max Lift and Dump

8.5 ft in

Reach at Max Lift and Dump

3 ft in


Compare similar models

Manufacturer / Model

Operating Weight

Operating Load

Operating Weight

10730 lb

Operating Load

4150 lb

Operating Weight

10365 lb

Operating Load

3850 lb

Operating Weight

10915 lb

Operating Load

3858 lb
