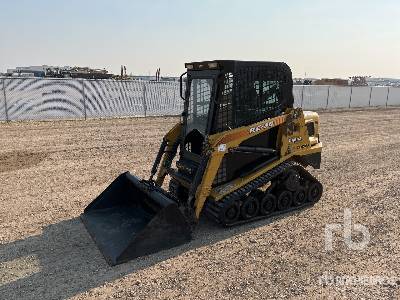

ASV RC30 Multi Terrain Loader
Units
Dimensions
Dimensions
B
Width Over Tracks
3.88ft in
C
Height To Top Of Cab
5.92ft in
E
Ground Clearance
10in
Length With Bucket
9.34ft in
Length With Out Bucket
7.59ft in
Undercarriage
D
Length Of Track On Ground
4.59ft in
I
Track Gauge
2.96ft in
Ground Contact Area
1178.01in2
Number Of Track Rollers Per Side
6
Width Of Track
11.03in
Ground Pressure
2.54psi
Specifications
Engine
Number Of Cylinders
3
Engine Make
2351
Engine Model
403C-15
Gross Power
31.5hp
Power Measured @
2800rpm
Peak Torque
64.4lb ft
Displacement
92cu in
Operational
Operating Weight
3305lb
Cooling System Fluid Capacity
1.5gal
Fuel Capacity
10.1gal
Engine Oil Capacity
1.1gal
Hydraulic System Fluid Capacity
8.1gal
Operating Voltage
12V
Alternator Supplied Amperage
55amps
Max Speed - High Range
5.9mph
Loader
Operating Load
800lb
Tipping Angle
1600degrees
Hydraulic
Pump Flow
10gal/min
Relief Valve Pressure
3000psi
