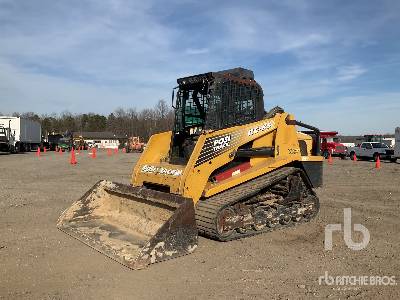

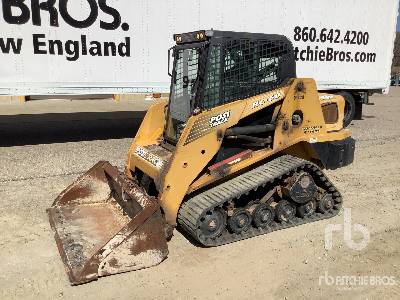

ASV PT70 Multi Terrain Loader

Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Multi Terrain Loader
Units

Dimensions

Dimensions

B

Width Over Tracks

5.5ft in

C

Height to Top of Cab

7.17ft in

E

Ground Clearance

15in

G

Clearance at Max Lift and Dump

8.17ft in

H

Reach at Max Lift and Dump

1.67ft in

Undercarriage

D

Length of Track on Ground

5.92ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2351

Engine Model

804C-33T

Gross Power

71hp

Power Measured @

2600rpm

Peak Torque

173lb ft

Displacement

202cu in

Aspiration

Turbocharged

Operational

Operating Weight

7890lb

Fuel Capacity

18gal

Cooling System Fluid Capacity

3gal

Engine Oil Capacity

9gal

Hydraulic System Fluid Capacity

21gal

Operating Voltage

12V

Alternator Supplied Amperage

90amps

Max Speed - high range

7mph

Undercarriage

Ground Contact Area

2130in2

Ground Pressure

3.7psi

Number of Track Rollers per Side

14

Length of Track on Ground

6ft in

Width of Track

15in

Loader

Operating Load

2750lb

Tipping Angle

5500degrees

Bucket Capacity

0.4yd3

Hydraulic

Pump Flow

30gal/min

Relief Valve Pressure

3000psi

Dimensions

Width Over Tracks

5.5ft in

Length with Bucket

11.8ft in

Length with out Bucket

9.4ft in

Height to Top of Cab

7.2ft in

Ground Clearance

15in

Clearance at Max Lift and Dump

8.2ft in

Reach at Max Lift and Dump

1.7ft in
