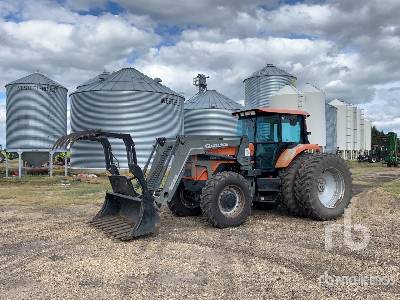

AGCO ST47a 4WD Tractor

4WD Tractor
4WD Tractor
4WD Tractor
4WD Tractor
4WD Tractor
4WD Tractor
Units

Dimensions

Dimensions

A

Overall Length

10.86in

B

Width Outside Frame

5.45ft in

C

Height to Top of Cab

7.52ft in

D

Wheelbase

6.24in


Specifications

Engine

Gross Power

46hp

PTO Power

38hp

Power Measured @

2600rpm

Displacement

134.1cu in

Aspiration

natural

Operational

Operating Weight

3494.4lb

3 Point Hitch Type

Cat I

3 Point Hitch Lift Capacity @ 24 inches

3086.5lb

Turning Radius

9.2ft in

Transmission

Transmission Type

8x8 synchroshuttle

Hydraulic System

Pump Flow Capacity

11.6gal/min

Axles

Final Drive

outboard spur gear

Dimensions

Wheelbase

6.3in

Overall Length

10.9in

Height to Top of Cab

7.6ft in

Tire Size

Ag R1

Width Outside Frame

5.5ft in
