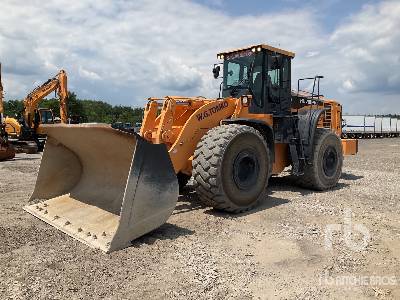

Hyundai HL780-9 Wheel Loader

Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Wheel Loader
Units

Dimensions

Bucket

G

Dump Clearance At Max Raise

10.83ft in

Bucket Capacity - Struck

6.02yd3

Bucket Width

11.32ft in

Bucket Capacity - Heaped

7.07yd3

Dimensions

E

Ground Clearance

1.63ft in

A

Length With Bucket On Ground

31.6ft in

B

Width Over Tires

10.57ft in

C

Height To Top Of Cab

12.69ft in

D

Wheelbase

12.14ft in

F

Hinge Pin - Max Height

14.97ft in

H

Reach At Max Lift And Dump

4.7ft in


Specifications

Engine

Number Of Cylinders

6

Engine Make

2347

Engine Model

QSM11

Net Power

344hp

Gross Power

348hp

Power Measured @

2000rpm

Max Torque

1235lb ft

Torque Measured @

1400rpm

Aspiration

Turbocharged

Operational

Operating Weight

66138.7lb

Fuel Capacity

118.9gal

Hydraulic System Fluid Capacity

61.9gal

Engine Oil Fluid Capacity

10.1gal

Cooling System Fluid Capacity

17.2gal

Transmission Fluid Capacity

11.4gal

Front Axle/Diff Fluid Capacity

15.4gal

Rear Axle/Diff Fluid Capacity

15.4gal

Static Tipping Weight

53351.9lb

Operating Voltage

24V

Alternator Supplied Amperage

70amps

Rear Axle Oscillation

26degrees

Tire Size

29.5-25

Transmission

Transmission Type

Powershift

Number Of Forward Gears

4

Number Of Reverse Gears

3

Max Speed - Forward

22.7mph

Max Speed - Reverse

15.6mph

Hydraulic System

Pump Flow Capacity

111gal/min

Raise Time

6.1sec

Dump Time

1.4sec

Lower Time

4.1sec

Pump Type

Variable Axial Piston
