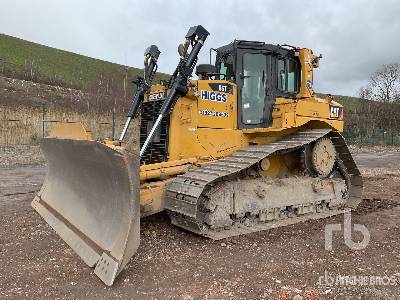

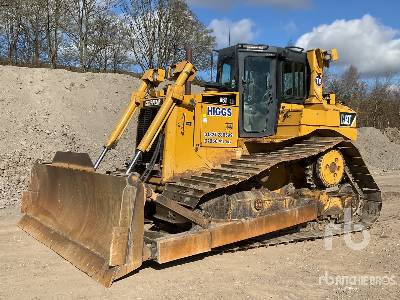

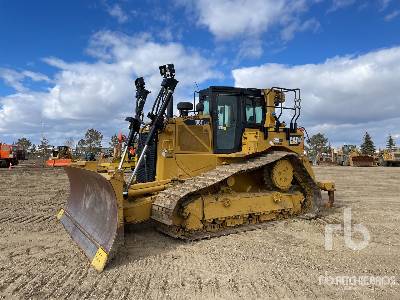

Caterpillar D6T (Tier 4 Interim/Stage IIIB) Crawler Tractor
Dimensions
Blades
Capacity - Lgp A-Blade
6.82yd3
Capacity - Lgp S-Blade
4.83yd3
Capacity - Lgp Vpat-Blade
6.65yd3
Capacity - Xl A-Blade
5.14yd3
Capacity - Xl Su-Blade
6.94yd3
Capacity - Xl Vpat-Blade
6.19yd3
Capacity - Xw A-Blade
5.63yd3
Capacity - Xw Su-Blade
6.6yd3
Capacity - Xw Vpat-Blade
6.65yd3
Width - Lgp A-Blade
16.7ft in
Width - Lgp S-Blade
13.3ft in
Width - Lgp Vpat-Blade
13.7ft in
Width - Xl A-Blade
13.7ft in
Width - Xl Su-Blade
10.7ft in
Width - Xl Vpat-Blade
12.8ft in
Width - Xw A-Blade
14.8ft in
Width - Xw Su-Blade
11.7ft in
Width - Xw Vpat-Blade
13.7ft in
Undercarriage
Ground Clearance
1.25ft in
Ground Pressure - Xl (Iso 16754)
8.4 psi
Ground Pressure - Xl Vpat (Iso 16754)
9.5 psi
Ground Pressure - Xw (Iso 16754)
6.4 psi
Ground Pressure - Xw Vpat (Iso 16754)
6.7 psi
Grouser Height
2.6in
Oscillation At Front Idler - Xl/Xl Vpat
5.5in
Oscillation At Front Idler - Xw
5.4in
Oscillation At Front Idler - Xw Vpat/Lgp/Lgp Vpat
6.4in
Pitch
8in
Shoe Type
Moderate Service
Shoes/Side - Xl/Xl Vpat/Xw
41
Shoes/Side - Xw Vpat/Lgp/Lgp Vpat
45
Track Gauge - Xl
74in
Track Gauge - Xl Vpat
84in
Track Gauge - Xw
80in
Track Gauge - Xw Vpat/Lgp/Lgp Vpat
90in
Track On Ground - Xl/Xl Vpat/Xw
112in
Track On Ground - Xw Vpat/Lgp/Lgp Vpat
128in
Track Rollers/Side - Xl/Xl Vpat/Xw
7
Track Rollers/Side - Xw Vpat/Lgp/Lgp Vpat
8
Width - Shoe - Xl/Xl Vpat
22in
Width - Shoe - Xw
30in
Width - Shoe - Xw Vpat
28in
Width - Shoe - Lgp
36in
Width - Shoe - Lgp Vpat
31in
Carrier Rollers/Side
1
Ground Contact Area (Iso 16754) - Lgp
10122in2
Ground Contact Area (Iso 16754) - Lgp Vpat
8684in2
Ground Contact Area (Iso 16754) - Xl
5489in2
Ground Contact Area (Iso 16754) - Xl Vpat
5489in2
Ground Contact Area (Iso 16754) - Xw
7449in2
Ground Contact Area (Iso 16754) - Xw Vpat
7909in2
Ground Pressure - Lgp Vpat (Iso 16754)
6.2 psi
Ground Pressure - Lgp (Iso 16754)
4.99 psi
Specifications
Ripper
Beam Cross Section
219 mm 254 mm (8.8 in 10 in)
Number Of Pockets
3
Ripper Type
Fixed Parallelogram
Pocket Spacing
3.3ft in
Shank Gauge
6.6ft in
Shank Section
74 mm 175 mm (2.9 in 6.9 in)
Overall Beam Width
87in
Weight - Each Additional Shank
163lb
Maximum Penetration
19.7in
Pry-Out Force
19600lb
Weight - With One Shank
3606lb
Maximum Penetration Force
14557lb
Ramp Angle
26 degrees
Maximum Clearance Raised - Under Tip
20.2in
Engine
Displacement
567cu in
Bore
4.5in
Stroke
5.9in
Engine Model
Cat C9.3 ACERT
Flywheel Power
205hp
Net Power - Rated - Iso 9249/Sae J1349
207hp
Net Power - Maximum - Iso 9249/Sae J1349
235hp
Engine Power - Maximum - Iso 14396
251hp
Engine Power - Maximum - Sae J1995
253hp
Engine Power - Maximum - Iso 14396 (Din)
254hp
Net Power - Rated - Iso 9249/Sae J1349 (Din)
209hp
Net Power - Maximum - Iso 9249/Sae J1349 (Din)
238hp
Global Emissions
U.S. Tier 4 Interim/EU Stage IIIB/Japan MLIT Step 4
Operational
Operating Weight
46158lb
Transmission
2.0 Forward
3.2mph
3.0 Forward
5.3mph
2.0 Reverse
4.1mph
3.0 Reverse
5.3mph
1.5 Forward
2.3mph
2.5 Forward
4.1mph
1.5 Reverse
3mph
2.5 Reverse
5.2mph
Drawbar Pull - 2.0 Forward
49260lb
Drawbar Pull - 3.0 Forward
26730lb
3.5 Forward
7.1mph
3.5 Reverse
9mph
Drawbar Pull - 1.5 Forward
81430lb
Drawbar Pull - 2.5 Forward
49260lb
Drawbar Pull - 3.5 Forward
26730lb
Weights
Operating Weight - Xl A
46791lb
Shipping Weight - Xl A
39138lb
Operating Weight - Xl Su
46263lb
Shipping Weight - Xl Su
39138lb
Operating Weight - Xw A
48922lb
Shipping Weight - Xw A
40596lb
Operating Weight - Xw Su
48034lb
Shipping Weight - Xw Su
40596lb
Operating Weight - Xw Vpat
53170lb
Shipping Weight - Xw Vpat
45840lb
Operating Weight - Lgp S
50490lb
Shipping Weight - Lgp S
43664lb
Operating Weight - Lgp Vpat
53651lb
Shipping Weight - Lgp Vpat
48521lb
Shipping Weight - Lgp A
43664lb
Operating Weight - Lgp A
52954lb
Operating Weight - Xl Vpat
52167lb
Shipping Weight - Xl Vpat
47165lb
Service Refill Capacities
Cooling System
17gal
Fuel Tank
112gal
Final Drive - Each
3.6gal
Hydraulic Tank
17.3gal
Engine Crankcase
6.5gal
Power Train
39.1gal
Pivot Shaft Compartment
1.3gal
Roller Frames - Each
6.6gal
Standards
Brakes
Brakes meet the International Standard ISO 10265:2008.
Rops/Fops
ROPS meets criteria ISO 3471:1994, 2008. FOPS meets ISO 3449:1992, 2005 Level II.
Cab
Meets appropriate standards as listed below.
Hydraulic Controls - Main Relief Valve
Pressure Setting - Implement - Non-Vpat
3150 psi
Pressure Setting - Implement - Vpat
3540 psi
Hydraulic Controls - Maximum Operating Pressure
Steering
5800 psi
Bulldozer - Lift - Non-Vpat
2800 psi
Bulldozer - Lift - Vpat
3125 psi
Bulldozer - Tilt - Non-Vpat
2800 psi
Bulldozer - Tilt - Vpat
3125 psi
Bulldozer - Angle - Vpat
3125 psi
Ripper - Lift - Non-Vpat
2800 psi
Ripper - Lift - Vpat
3125 psi
Hydraulic Controls - Pump
Lift Cylinder Flow
50 gal/min
Ripper Cylinder Flow
50 gal/min
Pump Output - Steering
52 gal/min
Pump Output - Implement
54 gal/min
Tilt Cylinder Flow
29 gal/min
Rpm At Rated Engine Speed - Fan
2135rpm
Rpm At Rated Engine Speed - Steering
2854rpm
Angle Cylinder Flow - Vpat
45 gal/min
Rpm At Rated Engine Speed - Implement
2135rpm
Pump Output - Fan
25 gal/min
Winch
Flange Diameter
19.9in
Oil Capacity
17.8gal
Winch Model
PA56
Winch And Bracket Length
47.8in
Drum Capacity - 22 Mm (0.88 In)
281ft in
Winch Drive
Mechanical
Control
Electric
Overall Width
38.4in
Drum Diameter
10in
Drum Width
12.4in
Rope Diameter - Recommended
0.9in
Cable Ferrule Size - O.D. Length
54 mm 67 mm (2.1 in 2.6 in)
Maximum Bare Drum - Line Speed
130 ft/min
Maximum Full Drum - Line Speed
224 ft/min
Winch Case - Width
34.3in
Maximum Bare Drum - Line Pull
89800lb
Maximum Full Drum - Line Pull
76300lb
Increased Tractor Length - Lgp
14.4in
Increased Tractor Length - Xl/Xw
20.4in
Drum Capacity - 25 Mm (1.0 In)
218ft in
Weight
2652lb
Winch Case - Length
35.5in
