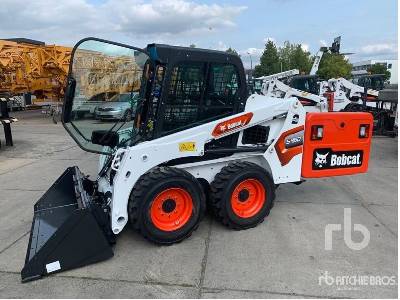

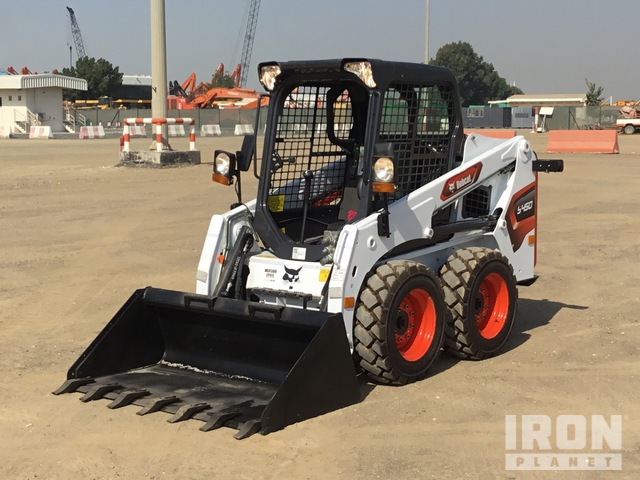

Bobcat S450 Skid Steer Loader
Units
Dimensions
Dimensions
A
Length With Bucket
10.42ft in
B
Width Over Tires
4.89ft in
E
Ground Clearance
8.39in
C
Height To Top Of Cab
6.49ft in
D
Wheelbase
2.95ft in
F
Length W/O Bucket
8.2ft in
G
Clearance At Max Lift And Dump
7.11ft in
H
Reach At Max Lift And Dump
20.79in
Specifications
Engine
Emission Tier Level
Tier 4
Gross Power
49hp
Cooling System
Liquid
Aspiration
Turbocharged
Fuel Type
Turbo Diesel
Operational
Lift Arm Path
Radius
Operational Weight
5026.6lb
Fuel Capacity
14.4gal
Max Speed
7.1mph
Loader
Loader Series
M2-Series
Height To Hinge Pin
9.2ft in
Operating Load Rating
1300lb
Tipping Angle
2599.3degrees
Bucket Width
62.1in
Hydraulic
Main Pump Flow Standard
16.7gal/min
Relief Valve Pressure
3300psi
